Description
8Ω stereo power 2x1250W
4Ω stereo power 2x1725W
2Ω stereo power 2x2300W
8Ω Bridge Mono power 3450W
4Ω Bridge Mono power 4600W
Signal Noise Ration(dB) ＞80dB
THD+N（8OHM 1KHZ IN 1/4 OUTPUT) ＜0.05%
Damping Factor(8OHM 1K) ＞1500
Slew Rate ＞20V/us
Input sensitivity 0.775v/1.0v/1.4v
Output Circuit Class H
Frequency Response(+/-0.1db) 20Hz-20kHz +-0.5dB

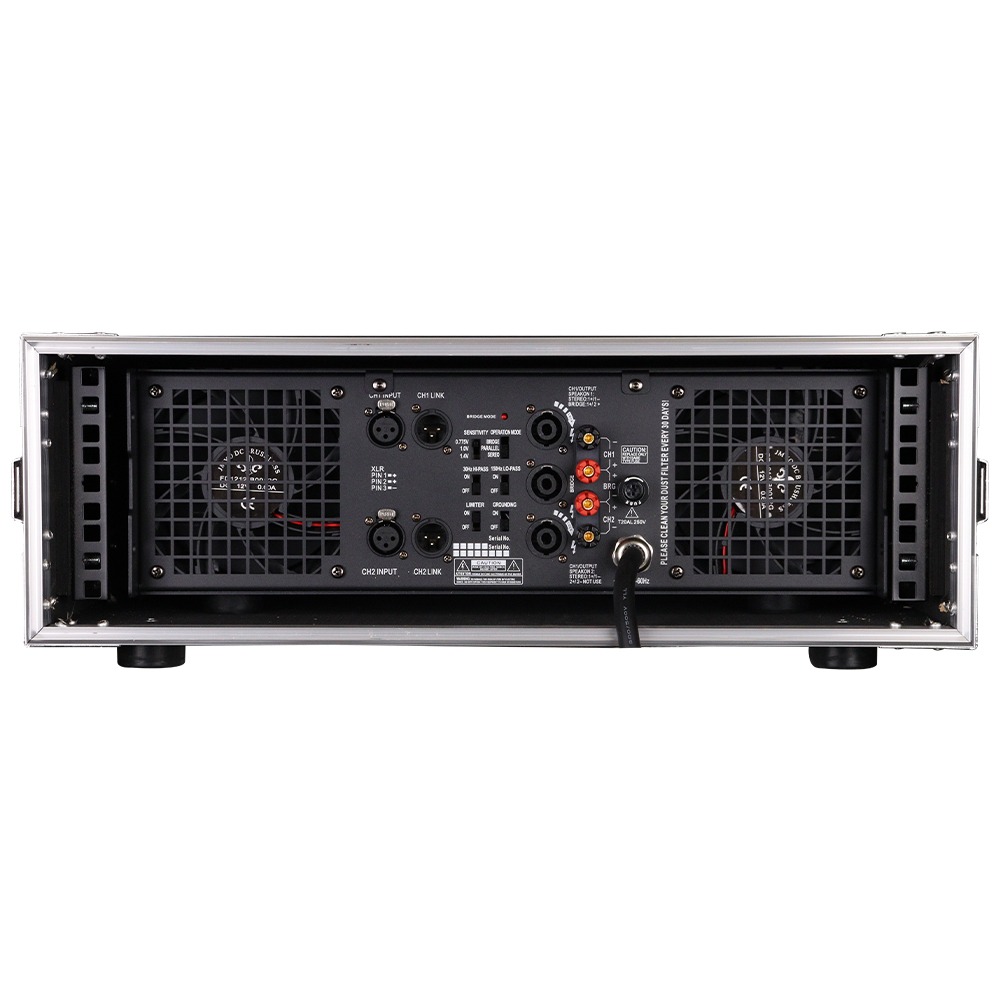

Input connectors(per ch.) 3-pin XLR, electronically balanced
Link connectors(per ch.） XLR, 3 pin male
Input Impedance 20kΩBALANCED-10kΩUNBALABCED
Output Connectors NEUTRIK
Amplifier Protection Protection of short circuit, open
circuit, overheat, overload, DC, super sonic frequency etc.

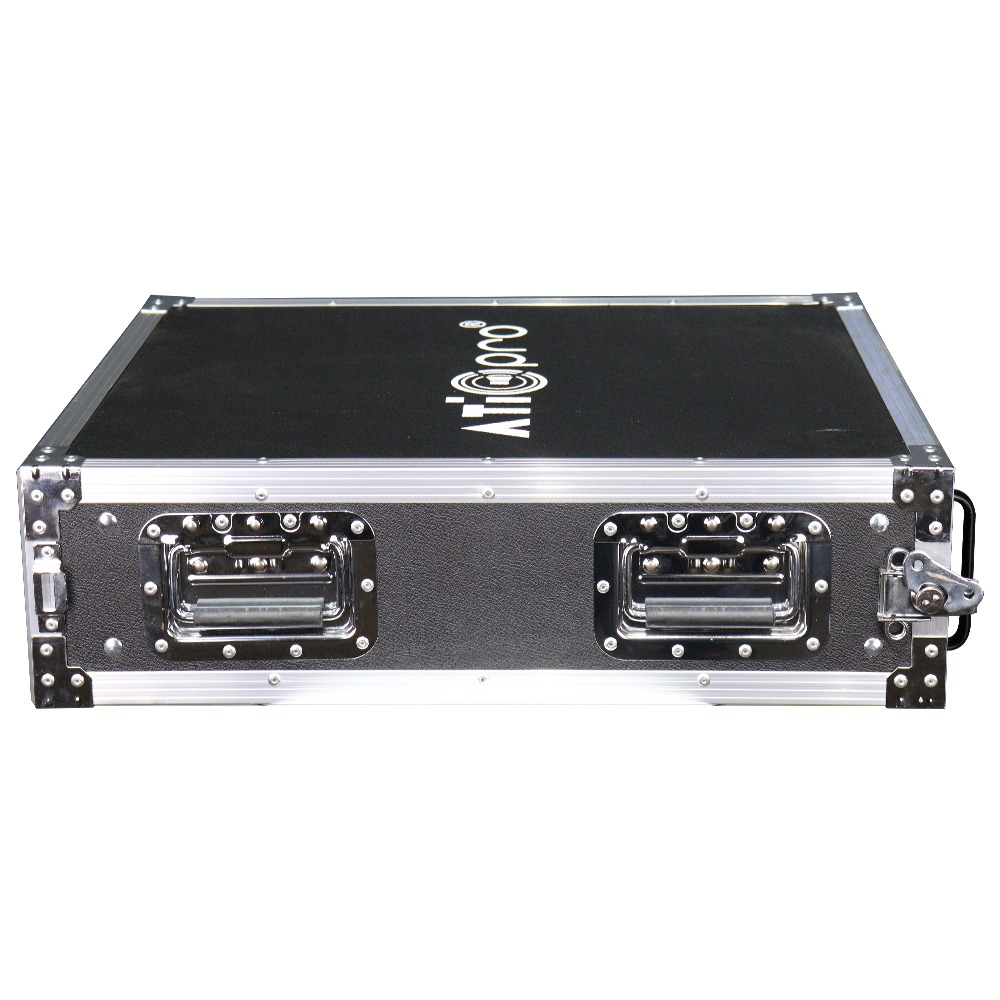

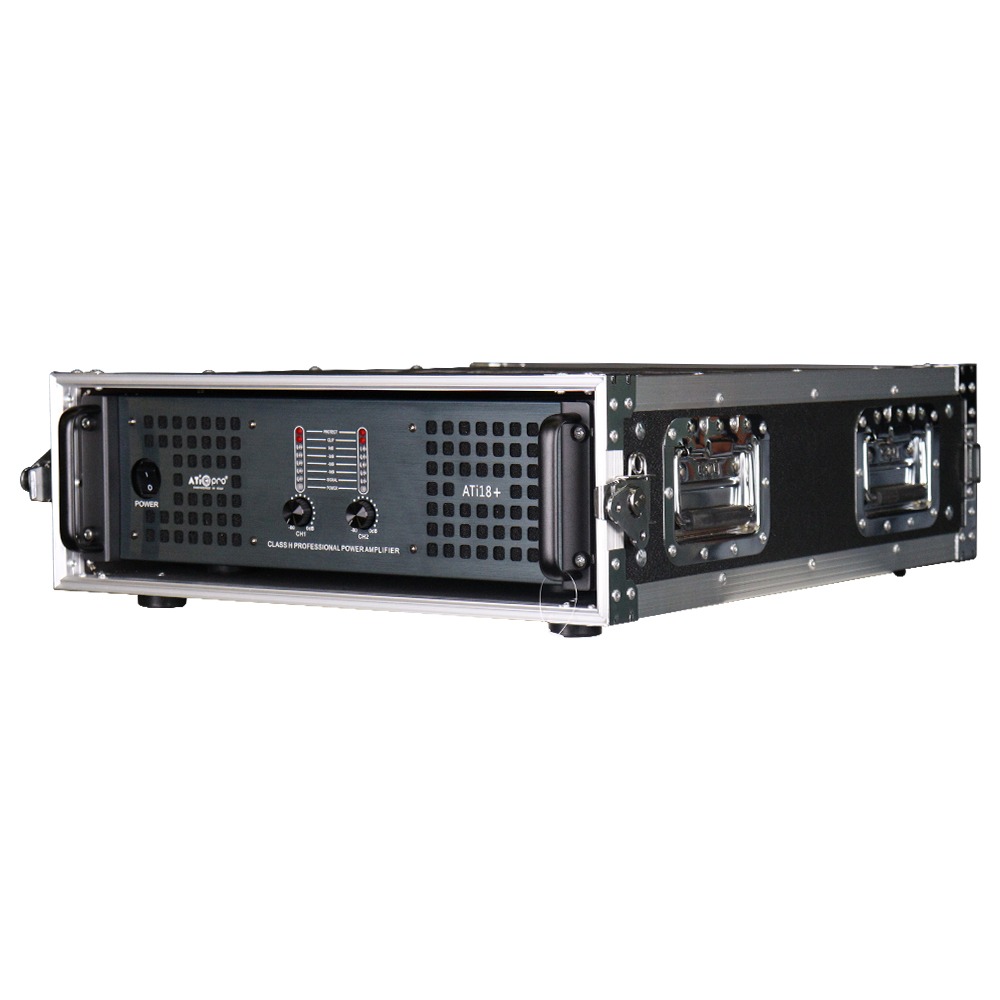

Packing Comes With Heavy Duty Flight Case
Net Weight 48kgs
Gross Weight 48kgs
