Description

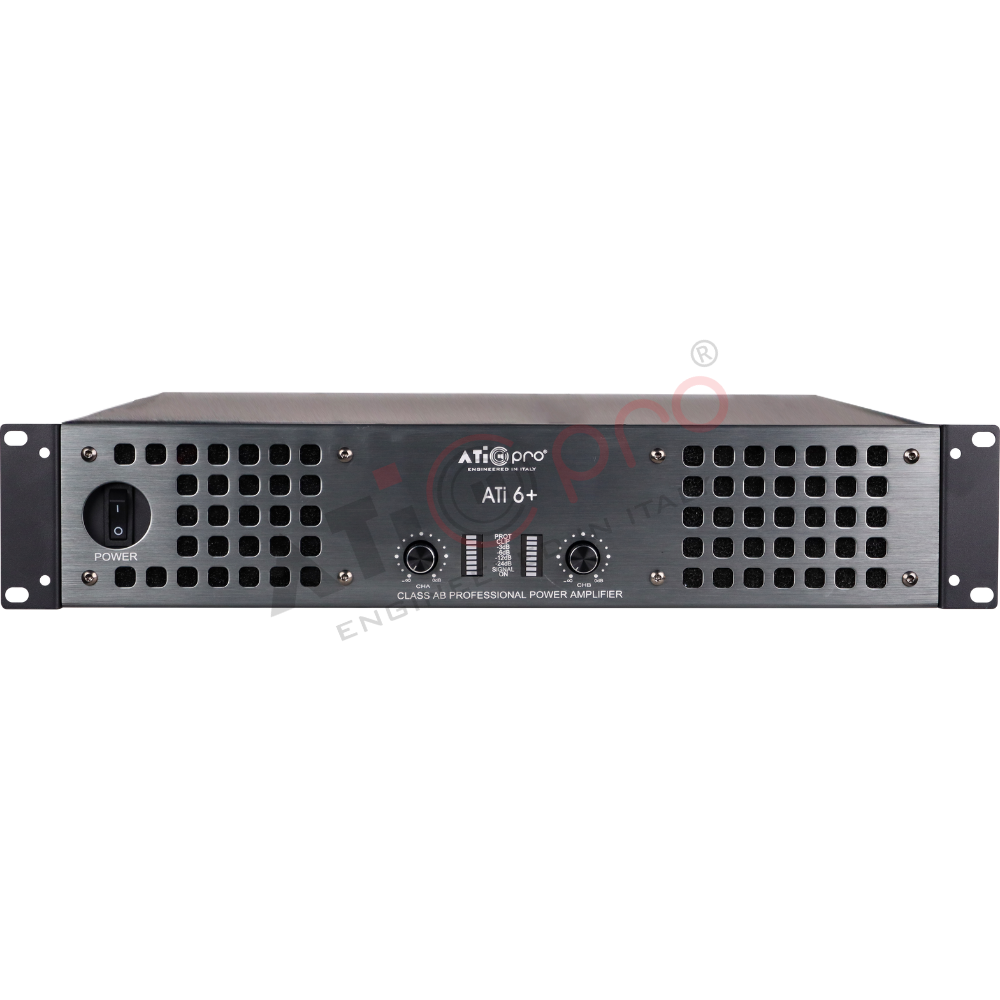

Model ATi 6+
8Ω stereo power 600WX2
4Ω stereo power 1000Wx2
2Ω stereo power 1600Wx2
8ΩBridge Mono power 2000w
4ΩBridge Mono power 3200w
Frequency response 20HZ-20KHZ
Signal noise rate ›80dB
THD+N(8OHM 1KHZ IN 1/4 OUTPUT) ‹0.05%
Damping Factor(8 Ohm 1 K) ›600
Slew Rate ›20V/us
Input Sensitivity 0.775v/1.0v/1.4v
Output topology Class AB
Input connectors(per ch.) 3-pin XLR,electronically balanced
Link connectors(per ch.) XLR,3 pin male
Input Impedance 20KΩBALANCED -10KΩUNBALANCED
Amplifier Protection Protection of short circuit,open circuit,overheat,overload,DC etc.
